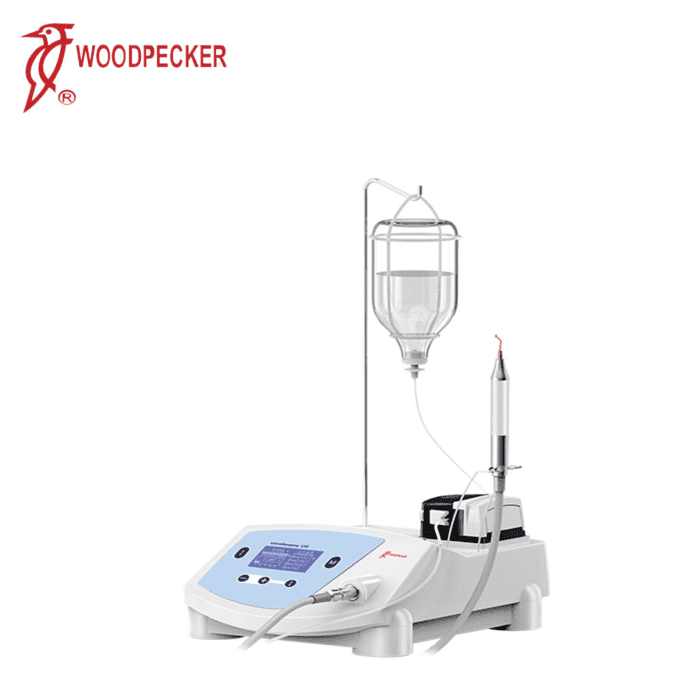

Woodpecker Piezo Surgery (Ultrasurgery)

The ultra surgery is a piezoelectric device for bone surgery that enables osteotomy and osteoplasty techniques to be applied in almost any anatomical situation. This equipment can be used in the following fields:
(1)Oral surgery
(2)Orthopedic surgery
(3)Maxillofacial surgery

(4)Cosmetic surgery (Ultrasonic Rhinoplasty) :

Piezo ultrasonic rhinoplasty, an alternative to traditional rhinoplasty that is less invasive.
This piezoelectric rhinoplasty, is a surgical procedure that uses a device that produces ultrasonic waves:
To help reshape the bones of the nose.
To precisely remove specific bone fragments and dense cartilage without the use of traditional instruments for nose surgery.
This device sends high-frequency ultrasonic waves directly to the nasal bone while rasps and chisels are responsible to cause additional trauma to the surrounding tissues:
Like swelling, bleeding, and sometimes even more scarring.

Benefits of Piezo Surgery is to avoids problems associated with chisels or rasps minimizing trauma to the surrounding soft tissues, blood vessels, and nerves.
Also Minimizes bleeding and swelling & Offers a faster and more comfortable recovery. Reduces postoperative pain & achieves more natural-looking results.

Safe and efficient, with a one-week minimum recovery time.

(5)Neurosurgery
(6)Otolaryngology

This equipment can’t be used in places where there is an inflammable atmosphere (anesthetic mixture, oxygen, etc)
Specifications :
Ultrasonic Bone Surgery Woodpecker Ultra Surgery
1.Three main functions: bone, root, clean
2. High quality with micrometric cutting
3. Bone cutting, membrane detachment, sinus lift, implant, extraction
4. Ultrasurgery is mainly used in oral surgery, plastic surgery, orthopaedics, division of osteotomy, osteoplasty surgery and bone collection.
5. Handpiece, cable, tip holder, working tip and torque wrench can be autoclaved under the high temperature of 135°C and the pressure of 0.22MPa.
6. The perfect monitor and alarm function of working process ensures the safety of the machine and surgery.
Advantage :
1. Selective cutting: The frequency from 24.0 kHz~29.5 kHz, cuts mineralized tissue with micro damage.
2. Precise cutting: The amplitude of vibration of Ultra surgery from 60um to 200um. It’s much safer than traditional motor.
3. Applied to all kinds of complicated surgery.
Sterilization: Handpiece, tips, cables can be autoclaved under high temperature of 134º C, and high pressure of 0.2 Mpa.
Cool cleaning: We advise doctors to use physiological solution as the cool liquid. The equipment should be preserved under 4º C. Cleaning is necessary after every operation
Technical parameters:
