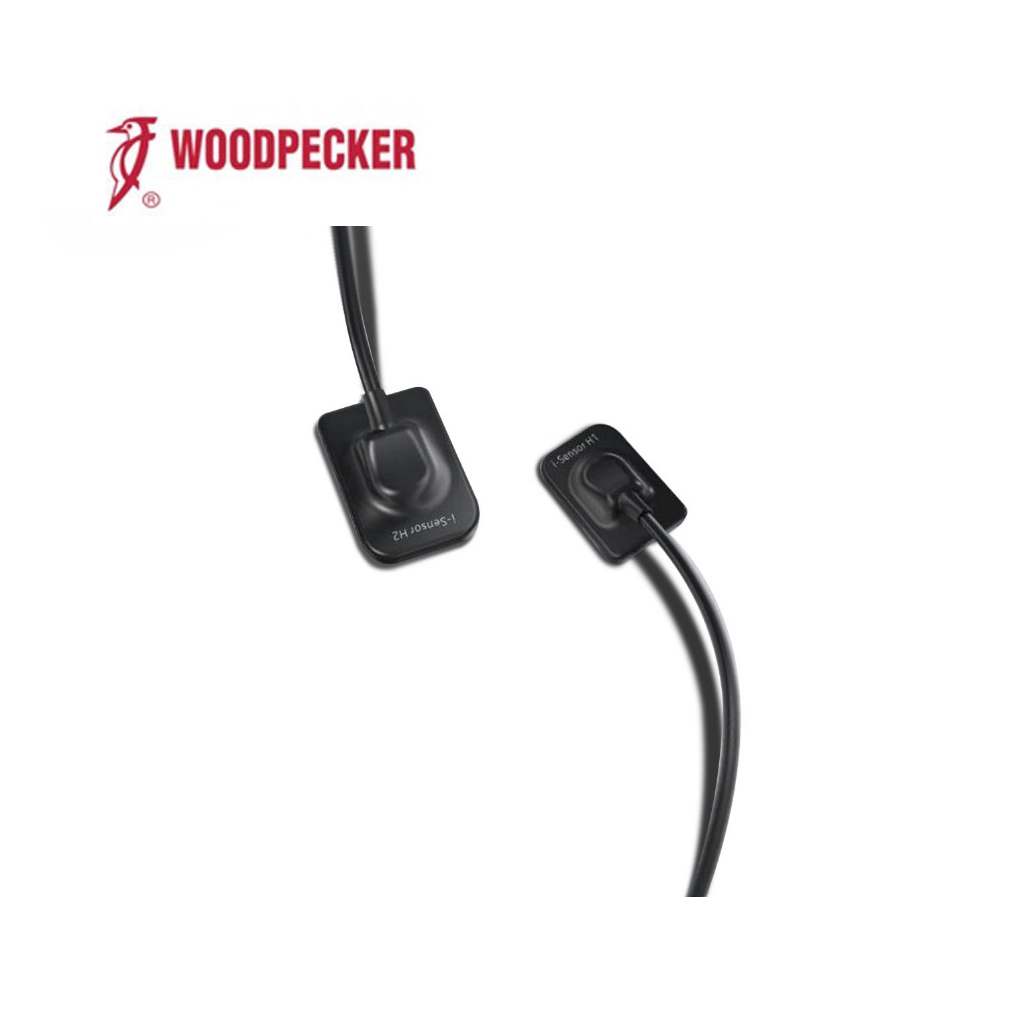

Woodpecker Sensor I-SENSOR

• Woodpecker RVG I-Sensor The most revolutionary intraoral RVG sensor is finally here
  Intuitive intraoral imaging has never been so economical.
• I Sensor RVG serves as a highly effective aid throughout the diagnosis, treatment, and treatment planning process.
• Easy-to-use software, with workflow efficiency improvements.
• As a powerful, centralized imaging hub for all patient images, Woodpecker i-Sensor manages all digital images, including intra- and extra-oral radiographs, as well as intra- and extra-oral photographs.
• Woodpecker has built a stellar reputation as a brand whose products extend from a strong lineage of imaging excellence and robust performance.
• An ideal solution for intraoral imaging needs, the easy-to-use sensor allows users to capturequickly and easily.

Features

• High-resolution imaging – 25lp/mm theoretical resolution
• C Mos Technology
• Thinnest sensor 4.4mm
• Durable and reliable: 80000+ bending test & IP68 protection rating
• Smart and powerful software
• H1 H2 size Available
• Curved Edges to Avoid Patient Injury
• Highly Flexible Cable
• It has a Twain option. and the server function.
• Now there is no limit for computers connected to the software license.
• I Sensor RVG serves as a highly effective aid throughout the diagnosis, treatment, and treatment planning process. Easy-to-use software, with workflow efficiency

Key specification

• • Power adapter input: 5V/USB interface
    Effective area: 20*30mm(H1)/26*36mm(H2)
    Pixel matrix size 1000*1500(H1)/1300*1800mm(H2)
    Pixel size 20μm
    Effective resolution ＞ 8lp/mm
    Specifications: 38.5*25*4.5mm(H1)/40.0*31.0*4.5mm(H2)

Weight: 118g(H1)/158g(H2)
